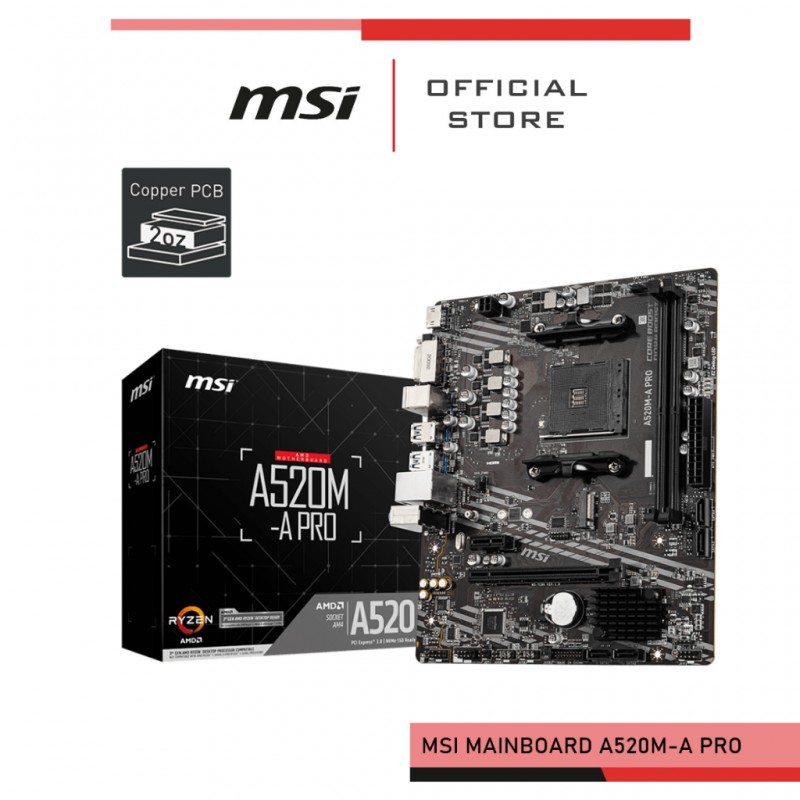

> >>>MAINBOARD (AM4) MSI A520M-A PRO DDR4
MAINBOARD (AM4) MSI A520M-A PRO DDR4 ดูขนาดใหญ่กว่า

MAINBOARD (AM4) MSI A520M-A PRO DDR4

ประกัน 3 ปี

สินค้าใหม่

  • Support CPU : AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • From Factor : Micro ATX
  • Chipset : AMD A520 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 4600(O.C.)
  • Memory MAX : 64GB

รายละเอียดเพิ่มเติม

9 รายการ

฿ 2,800.00

เพิ่มไปยังรายการสินค้าที่ต้องการ

รายละเอียดเพิ่มเติม

รายละเอียดสินค้า MAINBOARD (AM4) MSI A520M-A PRO DDR4



อ้างอิงจาก : https://www.msi.com/

คุณสมบัติ MAINBOARD (AM4) MSI A520M-A PRO DDR4

Brand MSI
Model

A520M-A PRO
CPU Support

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors

*Not compatible with AMD Ryzen 5 3400G & AMD Ryzen 3 3200G Processors
CPU Brand

AMD
Socket

AM4
Chipset

AMD A520
Memory Support

2 x DDR4 memory slots, support up to 64GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz

Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory Bus

4600
Graphics

1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz*,**
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
Maximum shared memory of 16 GB

*Available for the processor with integrated graphics.
**Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support

None
Audio

Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots

1 x PCIe 3.0 x1 slot
1 x PCIe x16 slot
Maximum PCIe Version

PCIe 3.0
Storage

AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)
  - Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
  - Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
  - Supports 2242/ 2260/ 2280 storage devices
M.2 Storage Type Support

NVMe, SATA
M.2 Slot

4
USB

AMD A520 Chipset
2 x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 xTPM module connector
1 x Clear CMOS jumper
Back Panel Connectors

1 x LAN port
1 x HDMI
1 x DVI-D
2 x Keyboard / Mouse
4 x USB 3.2 Gen 1 5Gbps Type-A
2 x USB 2.0 Ports
3 x Audio Connectors
LAN

1 x Realtek® RTL8111H Gigabit LAN controller
Wireless Data Network

None
Form Factor

Micro ATX
H/W Monitoring

N/A
BIOS

N/A
Special Features

N/A
Software Features

N/A
Operating System Support

Windows 10 64-bit
Package Contents

N/A
Dimension (W x D x H) : 20.00 x 23.60 x 3.60 cm
Net Weight 0.45 KG
Package Dimension (W x D x H) : 26.00 x 26.00 x 5.50 cm
Gross Weight 0.74 KG
Volume 3,718.00 cm3
