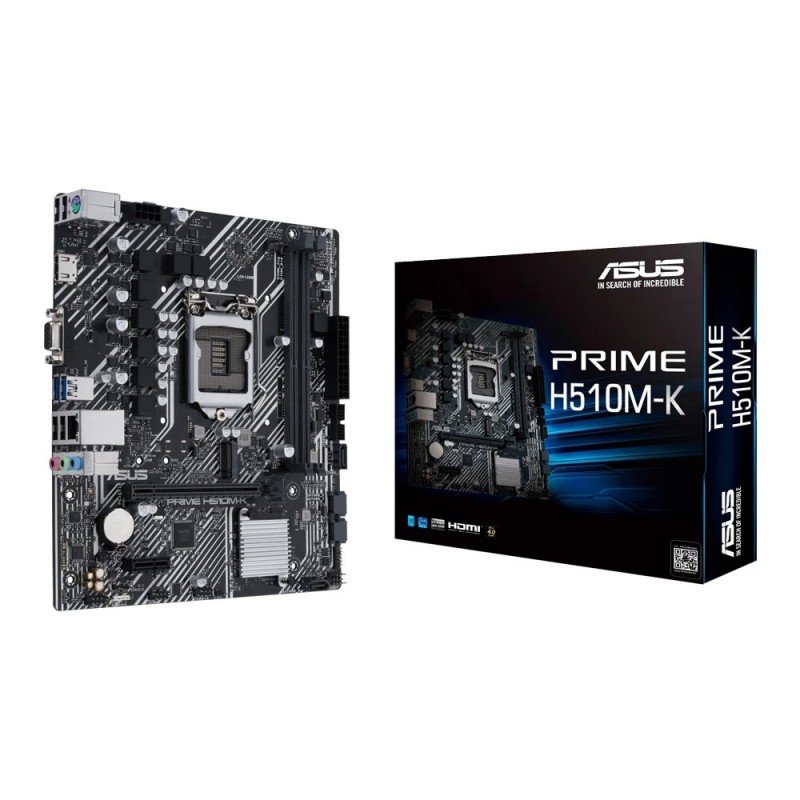

MAINBOARD (เมนบอร์ด) 1200 ASUS PRIME H510M-K

Model

BrandAsus

ModelPRIME H510M-K

CPU

Socket1200 (10th Gen - Comet Lake) , 1200 (11th Gen - Rocket Lake)

Wattage125W

ChipsetIntel H510

SeriesCeleron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium

Memory

Slot2

Memory TypeDDR4

Max. Capacity64 GB

Speed2133 , 2400 , 2666 , 2800 , 2800 (OC) , 2933 , 2933 (OC) , 3200 , 3200 (OC)

Graphic & Audio

GraphicIntegrated Graphics Processor (Depends on CPU)

AudioRealtek ALC897/887

7.1 Surround Sound High Definition Audio

Storage

SATA 2- Port

SATA 34 Port

RAIDNo

M.21 (1 Support PCIe & SATA) Port

Expansion Slots

DetailsNo

Slot1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot

Network

LANIntel I219V

LAN Speed10/100/1000 Mbps

WirelessNo

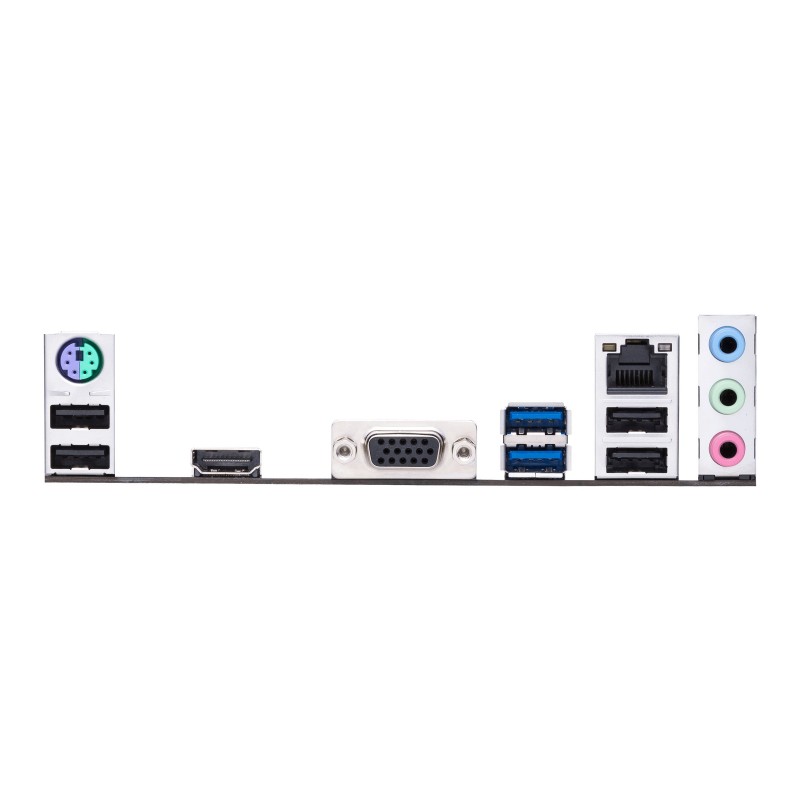

Back Panel I/O Ports

USB 2.04 Port

USB 3.0- Port

USB 3.1- Port

Serial- Port

USB 3.22 Port

D-Sub (VGA)1 Port

DVI- Port

HDMI1 Port

DisplayPort- Port

Audio3 Port

PS/21 (Keyboard/Mouse combo) Port

AdditionalNo

LAN1 Port

Form Factor

Form FactorMicro-ATX

Power Connector24 + 8 Pin

Dimension22.6 x 20.3 cm

Warranty

การรับประกัน3 Years
